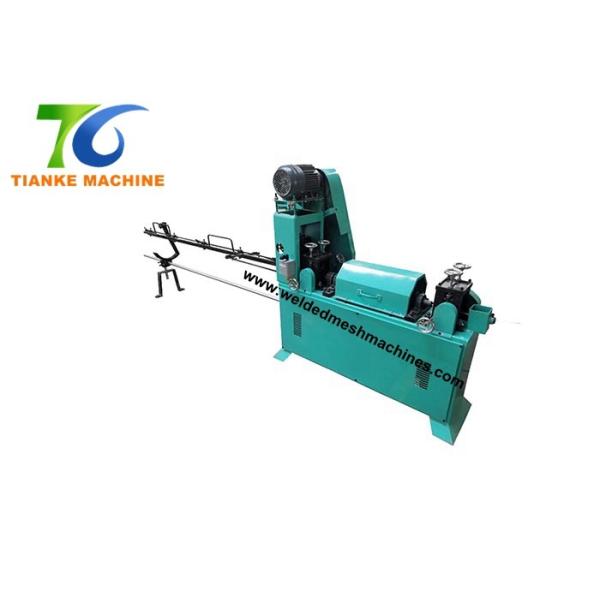

Aluminum Wire Coil Small Wire Straightening And Cutting Machine
Introduction of Wire Straightening and Cutting Machine
This wire straightening and cutting machine belongs to mechanical
wire straightening machine.The machine accessories are
castings,wear-resistant, long service life.This machine can
straighten galvanized wir coils,stainless steel wire coils,black
wire,etc.The machine can straighten 2.5mm to 6mm wire with wide
range of wire diameter.
Wire Straightening and Cutting Machine technology
The straightening part is composed of a straightening shaft, a
straightening pressing block and two bearing blocks to complete the
straightening work of the wire, the power is the motor mounted
under the machine frame, and the straightening shaft is rotated at
a high speed by the triangular tape.
Wire straightening and Cutting Machine Packaging and shipping
1. Packed in wooden case, or customized.
2. FOB Tianjin or other China main port by sea.
3. FOB Beijing airport or China main airport by air.
Wire Straightening And Cutting Machine Parameter
| Wire Diameter | 2.5-6mm |
| Input Voltage | 380V 50Hz ( Customized) |
| Steel wire surface | Aluminum wire,galvanized wire,black wire |
| Cutting Length | 2000mm ( Customized) |
| Tolerance of cut-to-length | ±1mm |
| Linearity of straightening | ≤2mm/m |
| Cutting Method | Automatic cut off |
| Straightening Speed | 30 m / min |
| Weight | 250kg |
| Accessory | Wire cutting track |
Wire Straightening And Cutting Machine Details
The core parts of the machine:The straightening shaft
The straightening shaft is integrally formed with 45# steel, and is
beautiful and durable without deformation and fracture. After
high-precision turning, milling and other machining processes, the
straightening shaft has balance and concentricity. When the machine
runs at high speed, the noise produced by the straightening shaft
is very small
Protective Cover
The gear and pulley of the machine, the whole frame and all parts
that can rotate are equipped with safety guards. Ensure the safety
of workers
The whole cut-off part is made of cast iron with accurate size and
wear resistance
